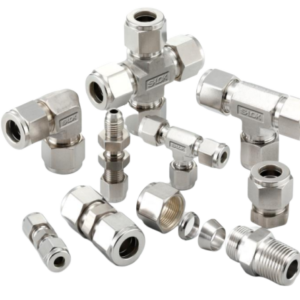

S-LOK TUBE FITTINGS
Tube Fittings have been designed specifically for the many demanding applications such as chemical, petroleum, power generating, pulp, paper and various types of manufacturing industries.They provide a highly reliable, leak proof and torque free seal on all tubing connections. Tube Fittings are commonly used oninstrumentation, process and control systems, where high quality tube fittings are required
S-LOCK PIPE & WELD FITTINGS
All instrument thread fittings are designed in accordance with ASMEB31.3 for instrument and process.Male thread are protected with cap.Burr-free internal and outside surfaces.NPT threads are based on requirement of ASME B1.20.1

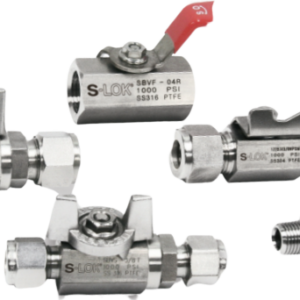

SBV10 SERIES BALL VALVE
•Compact design with hexagon bar-stock for high integrity.•Working pressure up to 1000psig(69bar) at 100℉(38℃).•Low torque quarter turn actuation.•Size range of from 1/4″ to 1″tubing and piping.•Various end connections : reliable S-LOK, NPT & ISO male & female.•Butterfly handle is available as option.

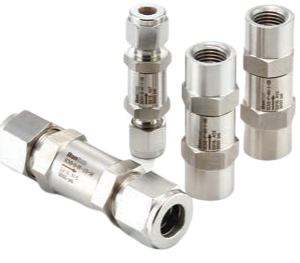

SCV30 SERIES CHECK VALVE
•Pressure rating up to 3,000psig (206bar)@70!(21″).•Temperrature rating up to 375!(191″) with Standard Vition O-ring.•Choice of materials : Standard S316 and Brass.•Cracking pressures include : 1/3, 1, 3, 10, 25, 50psi.•Heat code traceability.•Every valve is 100% factory tested for cracking and reseal.

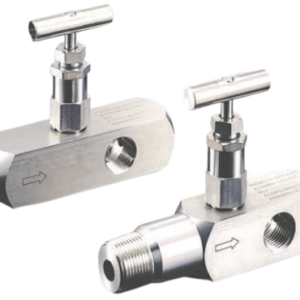

SGV60 GAUGE & GAUGE ROOT VALVES
• Each instrument manifold is tested with nitrogen@1,000 psig (69 bar) to max. leak rate of 0.1 (SSCM).• Hydrostatic shell test is performed at 1.5 times the working pressure as an option.• Other tests are available upon request.

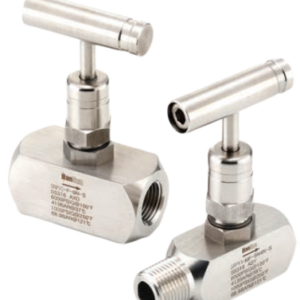

SRPV60 RISING PLUG VALVES
• Bi-directional flow control.• Replaceable seat design: Acetal seat standard, optional PEEK and PFA are available.• Non-rotating Stem Tip are composed for positive sealing and maximize soft seat life.• Internal bonnet O-ring protects threads from external contamination.• Isolated threads’ location above the sealing rings prevent media contamination and thread lubricant washout

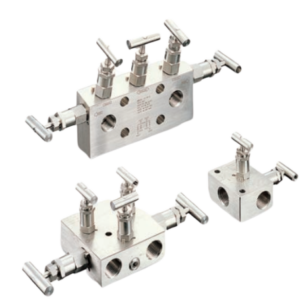

SMV, SMVD MANIFOLD
• Non-rotating stem tip at closure for long-life and leak-tight shutoff. Blunt VEE tip.• Exclusive 2-piece, chevron PTFE packing design provides far improved sealing integrity. Grafoil packing optional.• Isolated Threads : Packing located below the threads prevents media contamination and thread lubricant washout.• Packing under the stem threads is to isolate the threads from the system fluid and lubricant washout.• Packing bolt permits stem packing adjustment.
