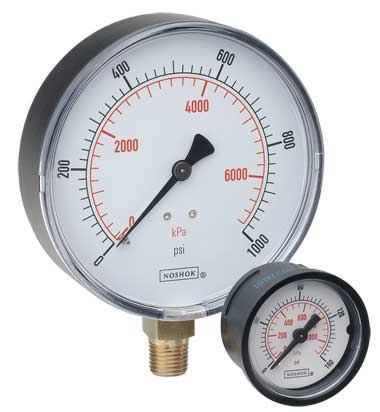

100 Series ABS & Steel Case Dry Pressure Gauges
Accurate and reliable general purpose dry gauge with vacuum & compound ranges, and ABS or Steel case. Ideal for applications including hydraulics, pneumatics, medical, pumps, compressors, refrigeration controls and more.
Multiple connection options are available including panel mount. A wide variety of pressure ranges, scale options, connections sizes, and options including flanges, case options, cover rings, lens materials, pointers, and orifices are also available.
Multiple connection options are available including panel mount. A wide variety of pressure ranges, scale options, connections sizes, and options including flanges, case options, cover rings, lens materials, pointers, and orifices are also available.

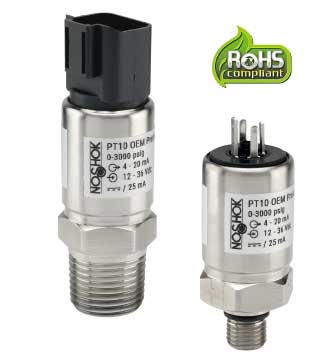

PT10 Series OEM Fixed Range Industrial Pressure Transmitters & Transducers
Gauge, compound, absolute and vacuum ranges from 2 psig to 15,000 psigCompact sizeCurrent and voltage outputs available316 Stainless Steel wetted partsRoHS compliantBuilt to CE standards to suppress RFI, EMI and ESD

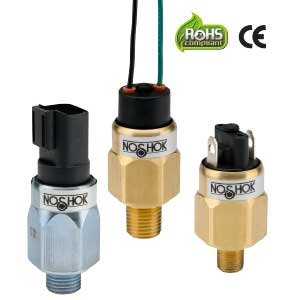

100 Series Mechanical Compact SPST Pressure Switches
Switch adjustment ranges from vacuum through 6,000 psi depending on model100V: Standard Brass with NBR diaphragm wetted parts100L: Standard Brass with Polyimide diaphragm wetted parts100H: Standard Zinc-nickel with Buna-N diaphragm wetted partsSPST creep action switch with Silver-plated contactsCE compliant to suppress RFI, EMI and ESDRoHS compliant

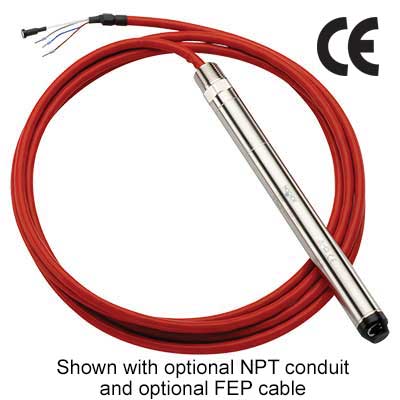

611 Series Small Diameter Submersible Level Transmitters
Hydrostatic level measurement for use in applications including bore holes and wells with small diameters (outer diameter 0.87")Low power output signals for battery-powered applications, and optional temperature output available5:1 turndown using optional HART® signal316 Stainless Steel, PVDF and Polyurethane wetted partsCE compliant to suppress RFI, EMI and ESDCertifications pending:ATEXCSAIECexIdeal for applications including well head measurement, groundwater monitoring, level measurement in open bodies of water, sewage lift and pumping stations, setting ponds and rainwater

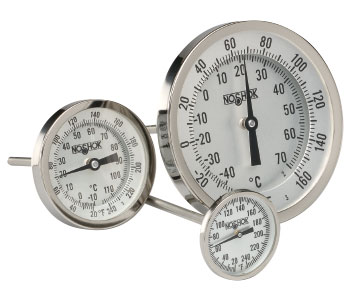

100 Series Industrial Type Bimetal Thermometers
Heavy-duty, industrial thermometer featuring a weather-resistant, tamper-proof caseSingle °F, single °C, and dual scale options availableAccuracy: ±1% full scale, Grade A, ASME B40.3± 1-3/4", 2", 3" and 5" sizes - center back connection only304 Stainless Steel case and bezelStandard stem lengths 2-1/2" through 42"Highly sensitive bimetallic helix coil is heat-treated for stress relief, and silicone-coated to minimize pointer vibration and maximize heat transfer and response time360° groove around stem is a visual reference to show minimum immersion pointMade in the U.S.A.

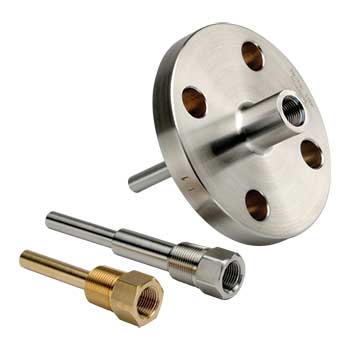

Thermowells
Allows a temperature instrument to be removed and replaced without shutting down and draining the processReduces the possibility of damage to the temperature instrumentProvides protection to the operator1/2" NPSM instrument connection, 3/4" NPT process connection standard - 1/2" NPT, 1" NPT, flanged and sanitary options available150 Class and 300 Class raised face flanged thermowells availableThe Female thread will accept the 1/2" NPT Male thread without galling or seizingBrass, 304 Stainless Steel, or 316 Stainless Steel standard material options - other options availableStandard style is stepped, available in straight, tapered and lagging optionsMultiple lagging lengths available
