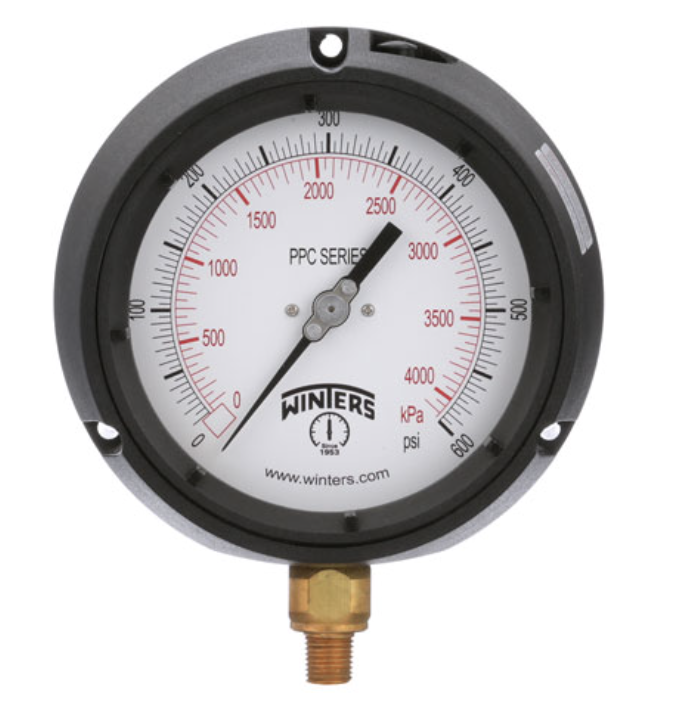

PPC PROCESS PRESSURE GAUGE
- Solid phenolic front and polypropylene pressure relief back safety case
- Field liquid-fillable (bottom connection only)
- ±0.5% accuracy
- Stainless steel full rotary movement for longer life
- Micrometer adjustable pointer for ease in calibration
- Under and overload stops
- 316L stainless steel, brass or Monel® wetted parts
- Restricted orifice standard on dual scale (optional on single scale)
- ASME B40.100 compliant
- RoHS compliant (SS and Monel® internals only)
- CRN registered
- 5 year warranty

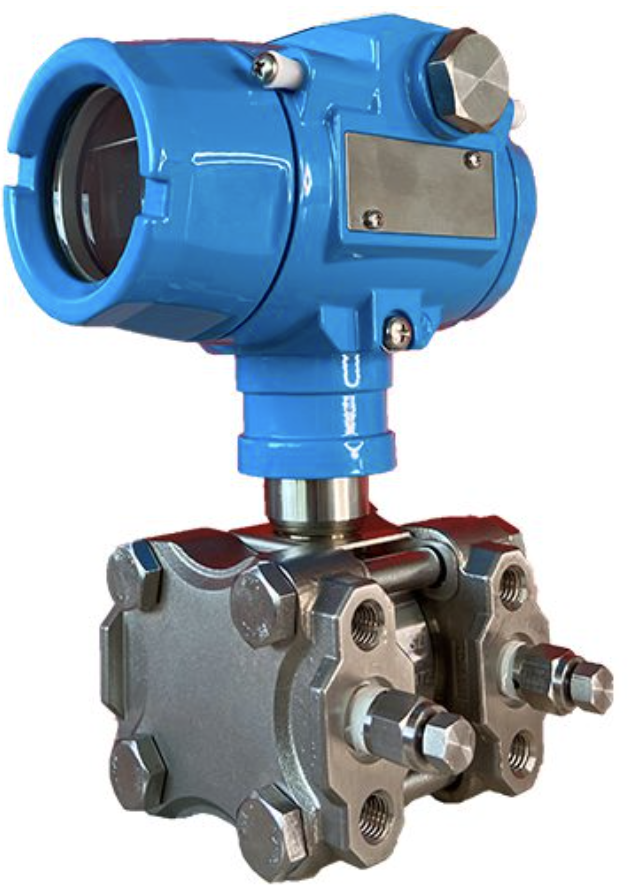

WINSMART™ LY36 SMART EXPLOSION PROOF DIFFERENTIAL PRESSURE TRANSMITTER
- Monosilicone-based high performing transmitter
- Explosion-proof smart differential pressure transmitter for hazardous locations
- Sour gas NACE0175 compliant
- Built-in temperature sensor
- 0.075% or 0.05% accuracy
- Simple to operate 3-push button control
- HART® or Modbus communications are available
- Low power option available
- Re-zero function for safe field calibration
- 10:1 rangeability allows for installation in any application
- CRN Registered
- 5-year warranty
- Differential pressure transmitters are useful instruments for measuring the difference between two pressures. If you’re looking for a differential pressure transmitter, look no further! Our LY36 smart differential pressure transmitter is one of the top-performing differential pressure transmitters in the market.

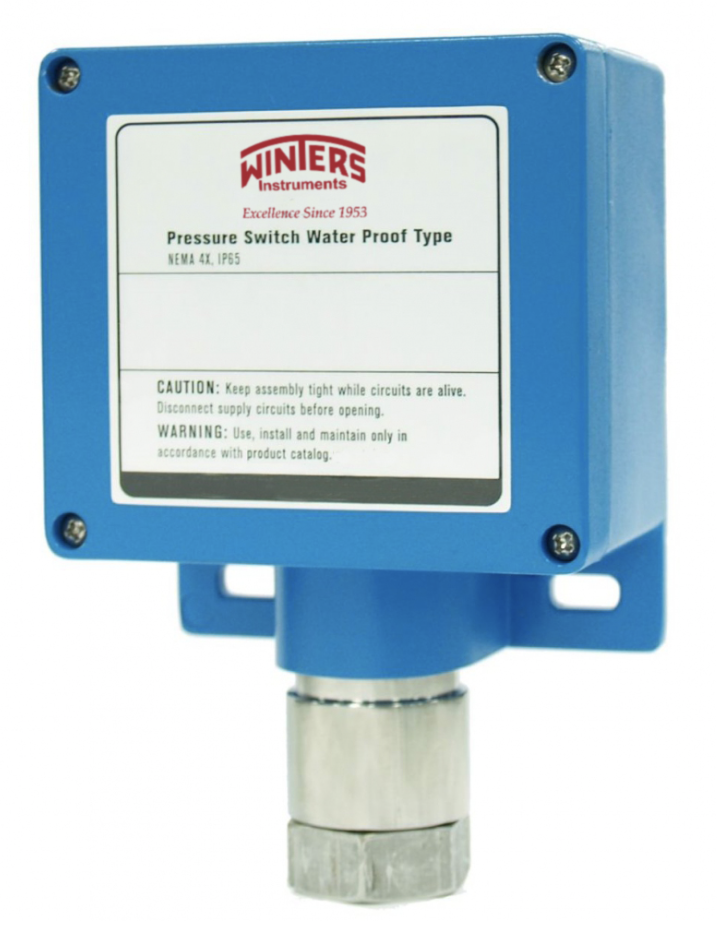

2WPS GENERAL PURPOSE AND ADJUSTABLE DEADBAND PRESSURE SWITCH
- General Purpose, watertight pressure switch
- Low pressure to 4,000 psi
- High current ratings for 1 x SPDT or 2 x SPDT switches
- Fixed or adjustable deadband options
- Die cast aluminum construction with welded seal
- 1% accuracy
- NEMA 4, 4X & IP66 rated
- RU recognized (switch only)
- CRN registration pending
- 5 year warranty

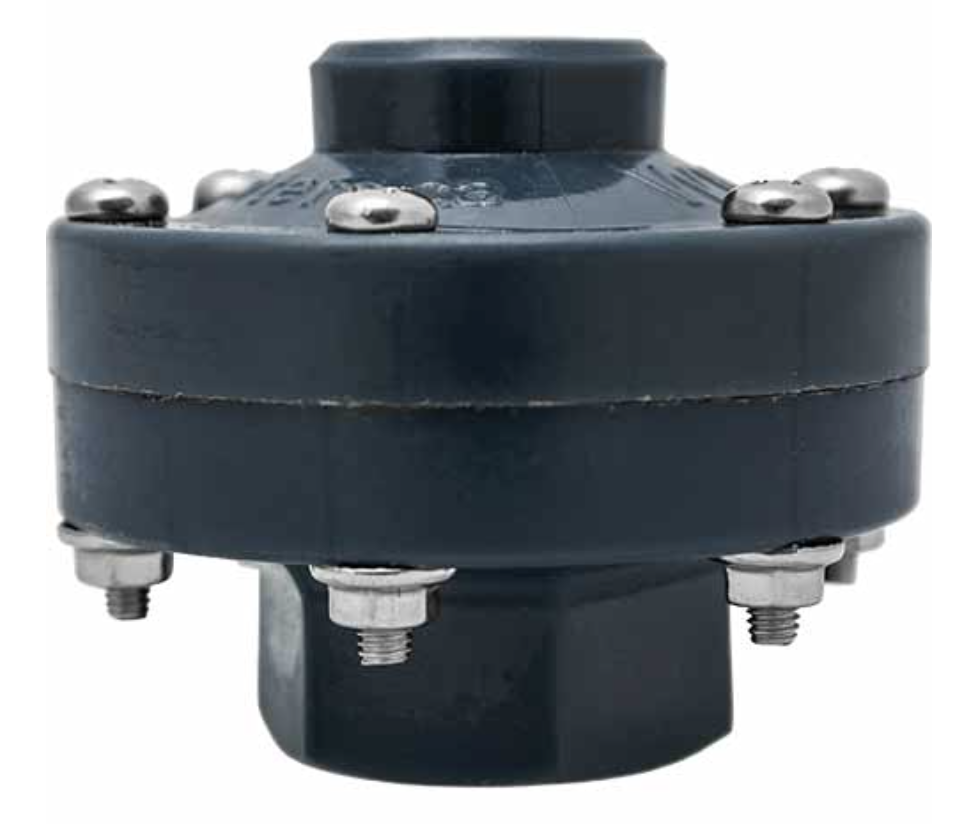

D10 PVC 2-PIECE DIAPHRAGM SEAL
- Features a durable and flexible PTFE diaphragm seal, which serves as a protective barrier between the process fluid and instrument
- High accuracy and dependability
- ASME B40.100 compliant
- 5 year warranty

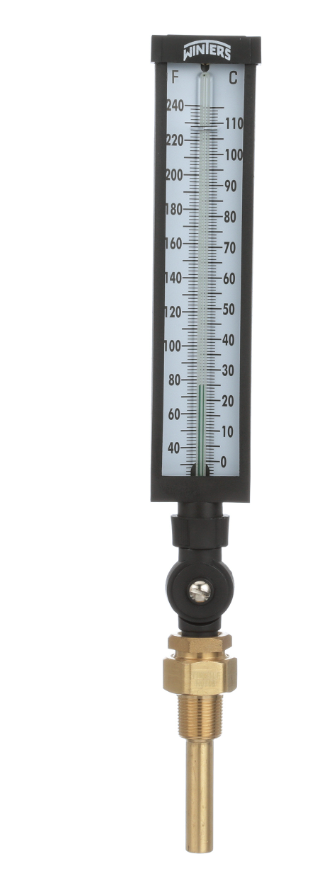

TIM INDUSTRIAL 9” THERMOMETER / TIM-LF LEAD FREE INDUSTRIAL 9” THERMOMETER
- Widely specified in the industrial and commercial plumbing trade
- Includes a separable brass or lead free brass thermowell
- 3.5” (90mm) and 6” (160mm) stem
- Available in aluminum or Valox® (9”) case
- Organic filled tube (magnifying)
- Dual scale (°F & °C)
- Adjustable angle connection and 360° case rotation for easy installation
- Graphite filled bulb chamber for maximum heat conduction
- ASME B40.200 and ASTM E2251 compliant
- RoHS compliant (with 304 SS or 316 SS thermowells only)
- CAN/CGSB-14.4-M88 compliant
- ±1% accuracy
- 5 year warranty

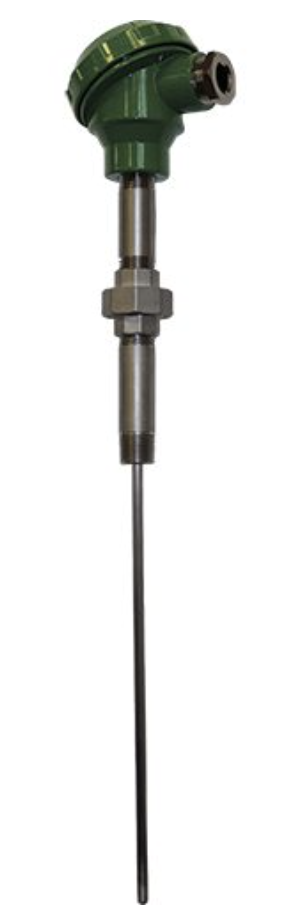

TER INDUSTRIAL RTD
- High accuracy Platinum element (Pt100)
- Light weight aluminum connection enclosure
- 2 wire 4-20mA output signal standard
- 316 SS sheath material
- IP54 or ATEX rated enclosure available
- Multi-point and surface mount sensors available
- Available with or without 316 SS thermowells
- 5 year warranty

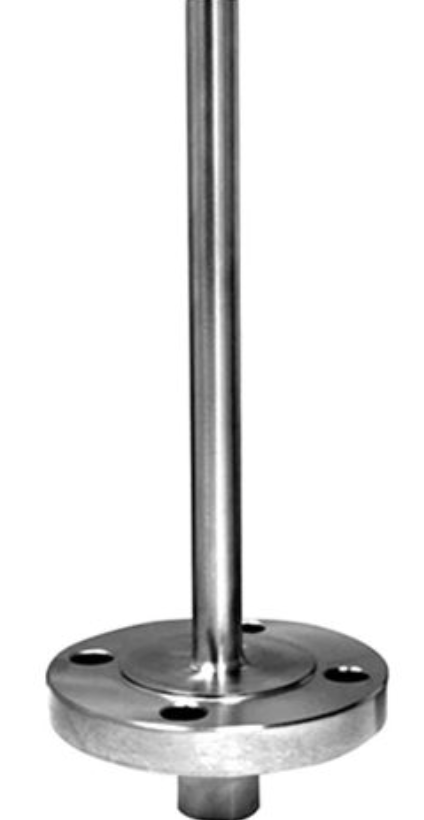

TWF FLANGED THREADED THERMOWELL
- Element Length 4" (100mm), 6" (150mm), 9" (225mm), 12" (300mm), 15" (370mm) stem
- “U” Dimension 2" (50mm), 4" (100mm), 7" (178mm), 10" (254mm), 13" (330mm)
- Material 304 SS or 316 SS
- Flange Size and Rating 1" (25mm), 1.5" (40mm), 2" (50mm) 150# or 300#
