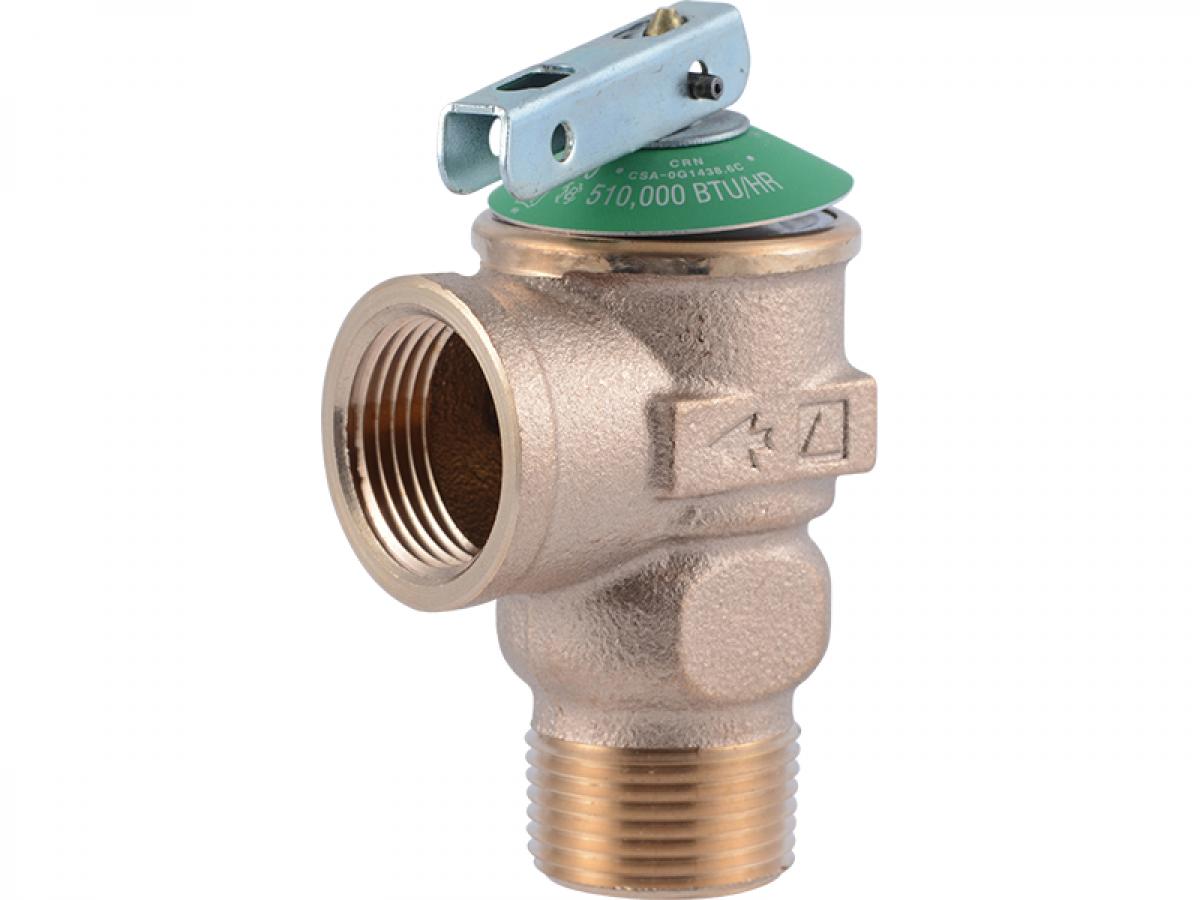

F-30 Pressure Relief Valve
- The F-30 is a compact and economical ASME Safety Relief Valve for use on hot water space heating boilers, water supply heaters, and storage tanks. It features an all brass body, brass internal parts, a silicone seat disc and a stainless steel pressure spring.
- The F-30 Relief Valve is designed for use on hot water service only and is not to be used on steam.
- The F-30 is available in 3/4″ size only. The standard factory pressure relief setting is 30 psi.

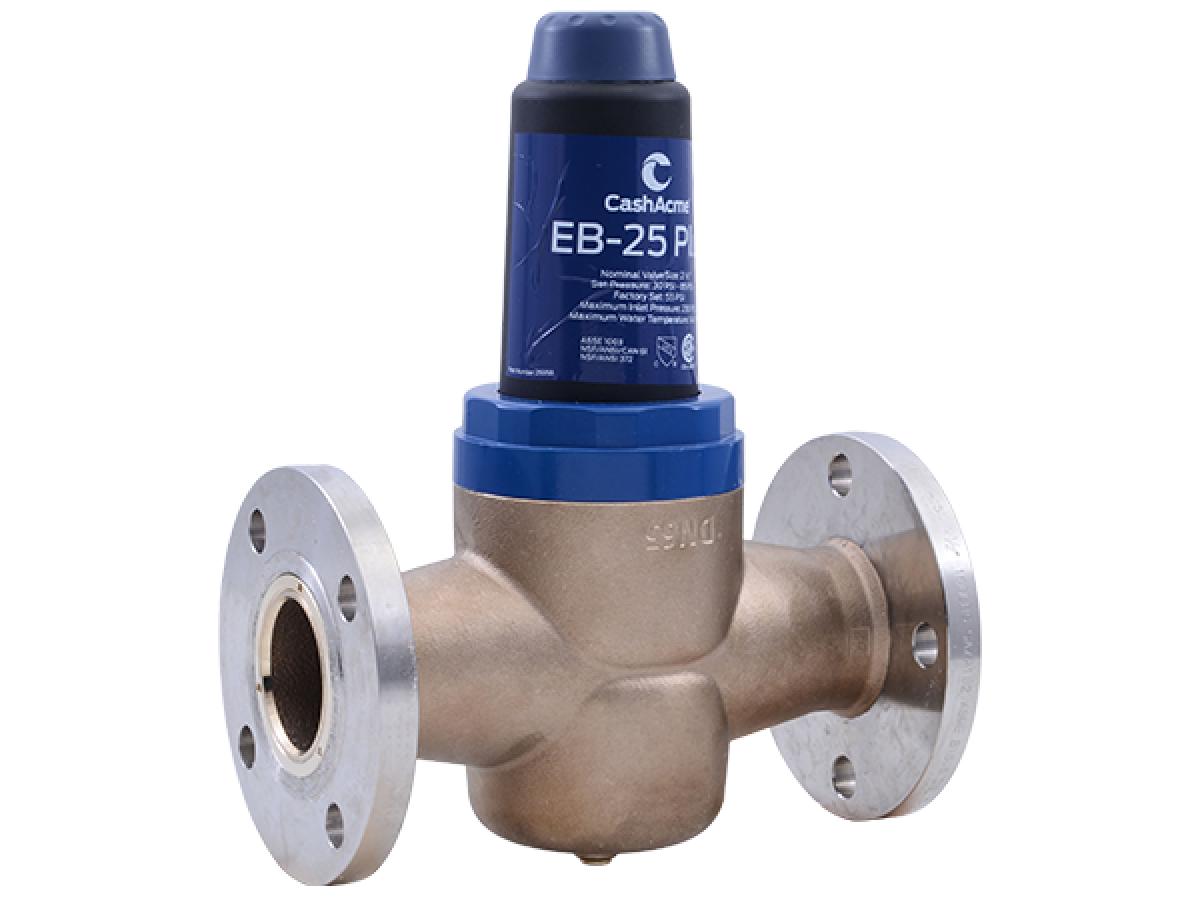

EB25 Plus
The EB25 Plus brings state-of-the-art water control technology to pressure regulators. The accurate flow control and pressure regulation of the EB25 Plus eliminates the need for costly multi-valve installation, such as high-low valves installed in parallel to meet varying flow requirements or multi-valves installed in series to reduce high inlet pressures to desired line pressure.
The EB25 Plus is a lead-free product. It is designed to service commercial and institutional water installations that experience wide variation in water demand or for applications where there are high inlet pressures. The valve is available in 2-1/2 in., 3 in., and 4 in. sizes, all with flanged connections. The valve is factory set at 55 psi and ranges from 30-85 psi.

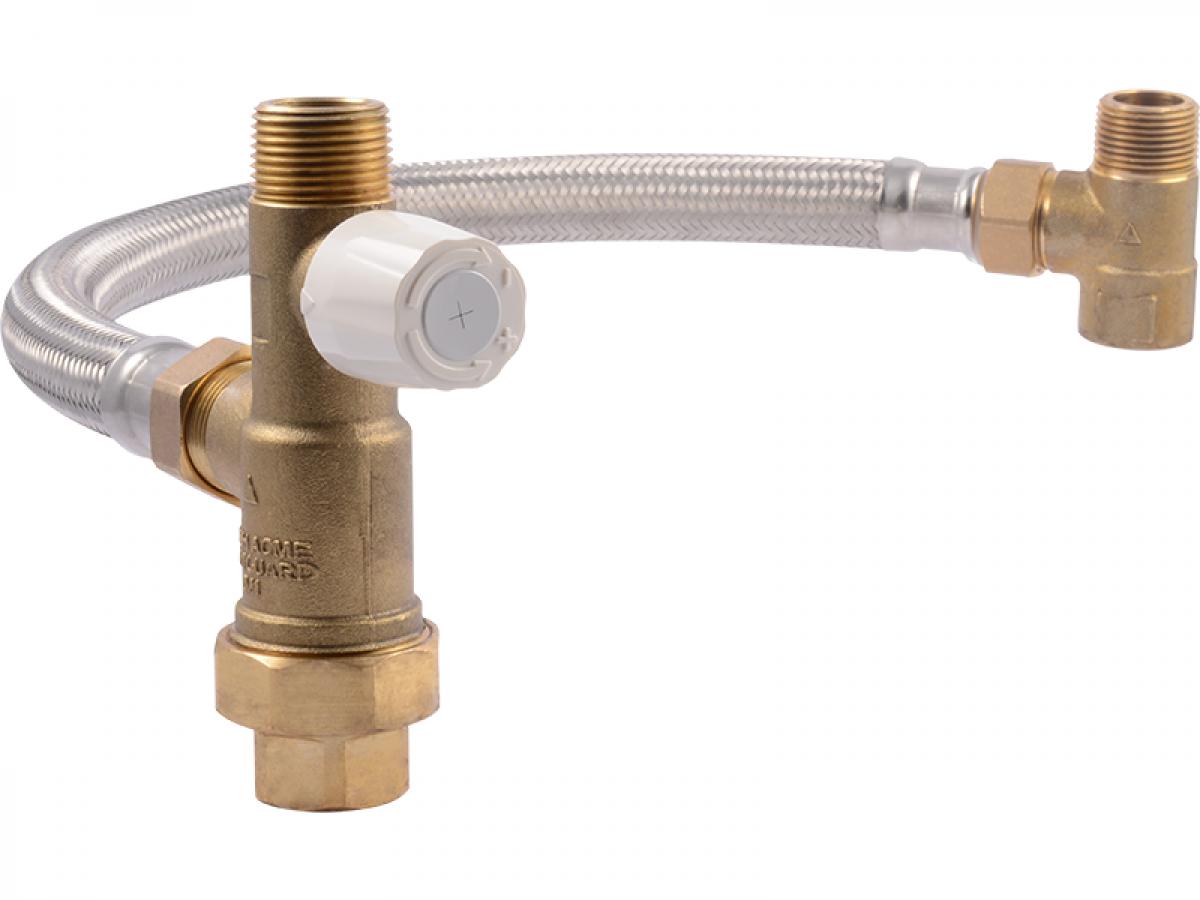

Tank Booster™ Thermostatic Mixing Valve
The Cash Acme hot water Tank Booster™ combines a Thermostatic Mixing Valve (TMV), Flexible Connector and Water Heater Tee in one package. It’s designed to effectively double a household’s usable hot water heater capacity while delivering water at safe temperatures in both residential and commercial applications.
Tank Booster provides source-point temperature control for hot water heaters, allowing the water in the tank to reach up to 140°F – high enough to destroy bacteria. While the water within the tank is incredibly hot, the Tank Booster outputs are all set at 120°F (49°C). This ensures the water leaving the tank is delivered at a safe temperature. The valves can be easily adjusted if a lower temperature is desired at delivery.
Tank Booster products are shipped with the valve, flexible connector and water heater tee. They are compatible with SharkBite Flexible Water Heater Connectors & Ball Valves for easy installation in systems using copper, CPVC or PEX tubing. There’s no need for additional transition fittings.
Tank Booster provides source-point temperature control for hot water heaters, allowing the water in the tank to reach up to 140°F – high enough to destroy bacteria. While the water within the tank is incredibly hot, the Tank Booster outputs are all set at 120°F (49°C). This ensures the water leaving the tank is delivered at a safe temperature. The valves can be easily adjusted if a lower temperature is desired at delivery.
Tank Booster products are shipped with the valve, flexible connector and water heater tee. They are compatible with SharkBite Flexible Water Heater Connectors & Ball Valves for easy installation in systems using copper, CPVC or PEX tubing. There’s no need for additional transition fittings.

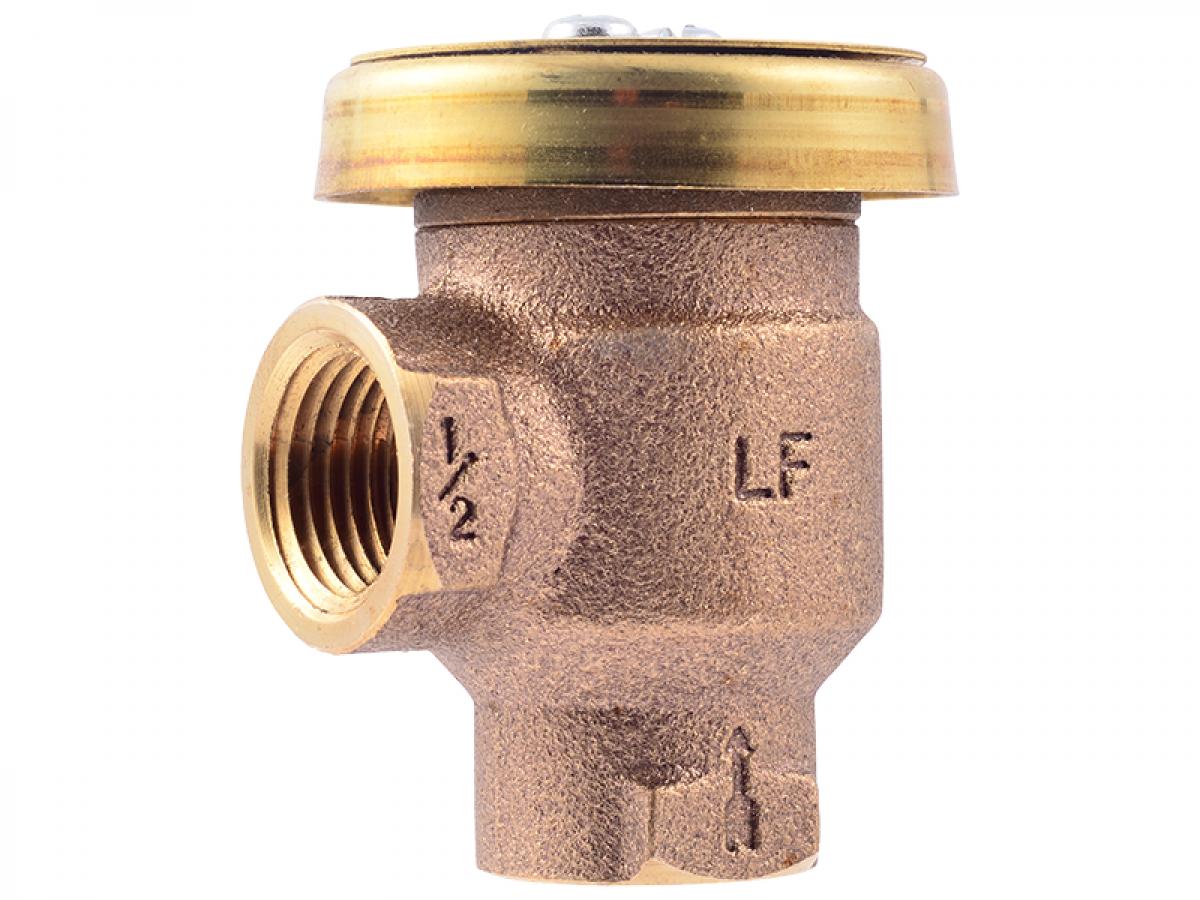

VR20 Vacuum Relief Valve
The VR20 Vacuum Relief Valve is designed to protect hot water supply systems and pressure vessels against negative pressure. It is especially well suited for many domestic and commercial systems.
It works by preventing internal vacuum conditions that could result in burned out heaters and/or collapsed storage tanks. Installed on the cold water supply line, the Cash Acme VR20 closes tightly under pressure and opens at a 1″ mercury vacuum. Atmosphere admitted to the system breaks the vacuum, preventing collapse of the storage tank.
It works by preventing internal vacuum conditions that could result in burned out heaters and/or collapsed storage tanks. Installed on the cold water supply line, the Cash Acme VR20 closes tightly under pressure and opens at a 1″ mercury vacuum. Atmosphere admitted to the system breaks the vacuum, preventing collapse of the storage tank.
V-101 Anti-Siphon Vacuum Breaker
The V-101 anti-siphon vacuum breaker is constructed with female connections, a bronze body, and a silicone seat. It is designed for maximum intermittent water pressure of 125 psi, and is suitable for temperatures up to 212°F (100°C). A polished chrome model is also available (up to 1 in. size only).

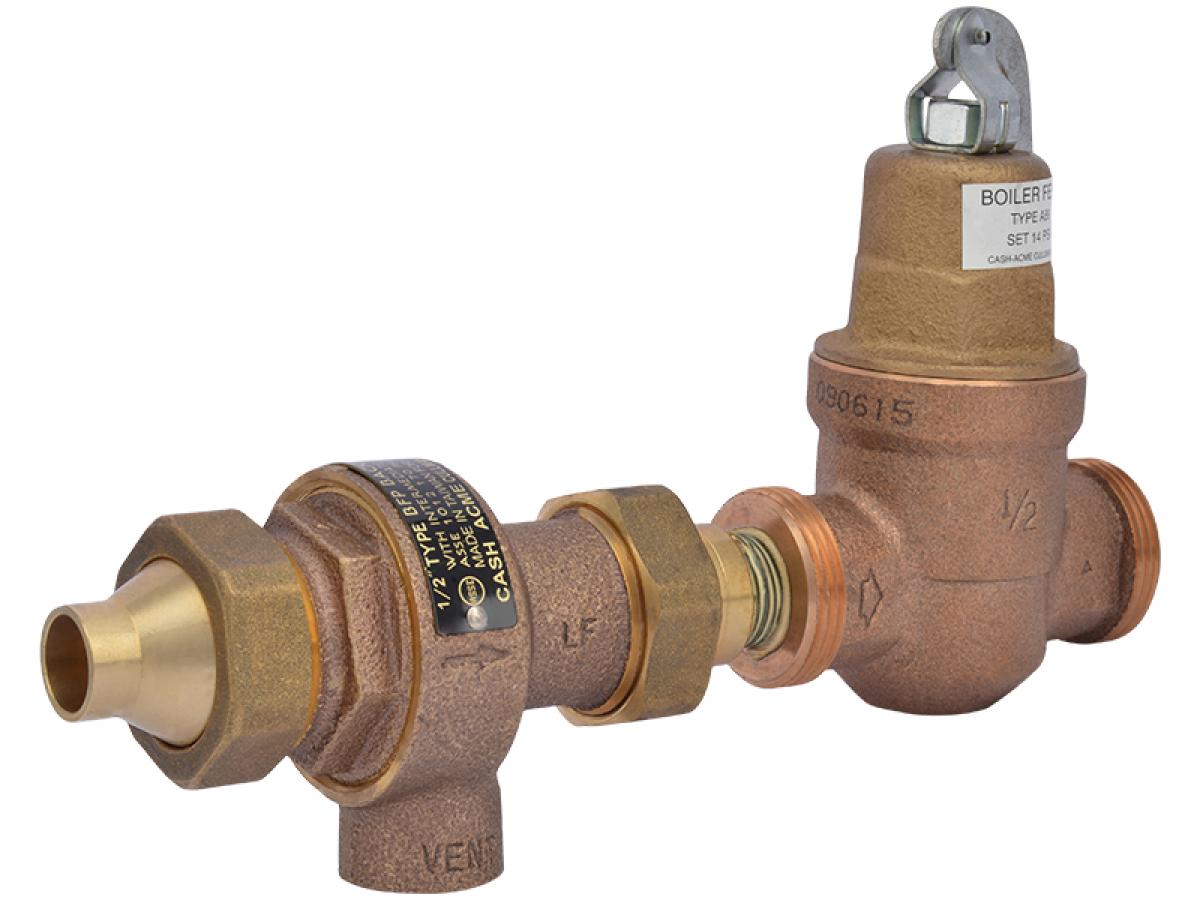

BFAC Pressure Regulating Backflow Preventer
The BFAC pressure-reducing backflow preventer combines the quality pressure reduction of the A-89 Pressure Reducing Boiler Feed Valve with the effective backflow prevention of the BFP Double-Check Backflow Preventer. The BFAC accurately reduces system pressure down to 14 psi while preventing the back-siphonage of contaminated water into the potable water supply. The BFAC features threaded (NPT) inlet and outlet connections.
